Description
PowerCharge: Fast, safe and efficient EV Charging.
POWERING THE FUTURE, ONE CHARGE AT A TIME
Technical Specifications.
USER-FRIENDLY INTERFACE AND SLEEK DESIGN
Dimensions (HxDxW)
310 x 95 x 220 (mm)
Weight
7kg
Wallbox
LAN (RJ-45), WiFi and 4G
CABLE LENGTH
5m
AC Power Input Rating
230VAC (1-Phase)
Rated Frequency
50/60Hz
Output Voltage
230VAC
OUTPUT CURRENT
32A
OUTPUT POWER
7kW
CONNECTION TYPE
IEC 62196-2, Type 2Cable 5m
Charging Control
Plug & Charge, RFID Card or APP

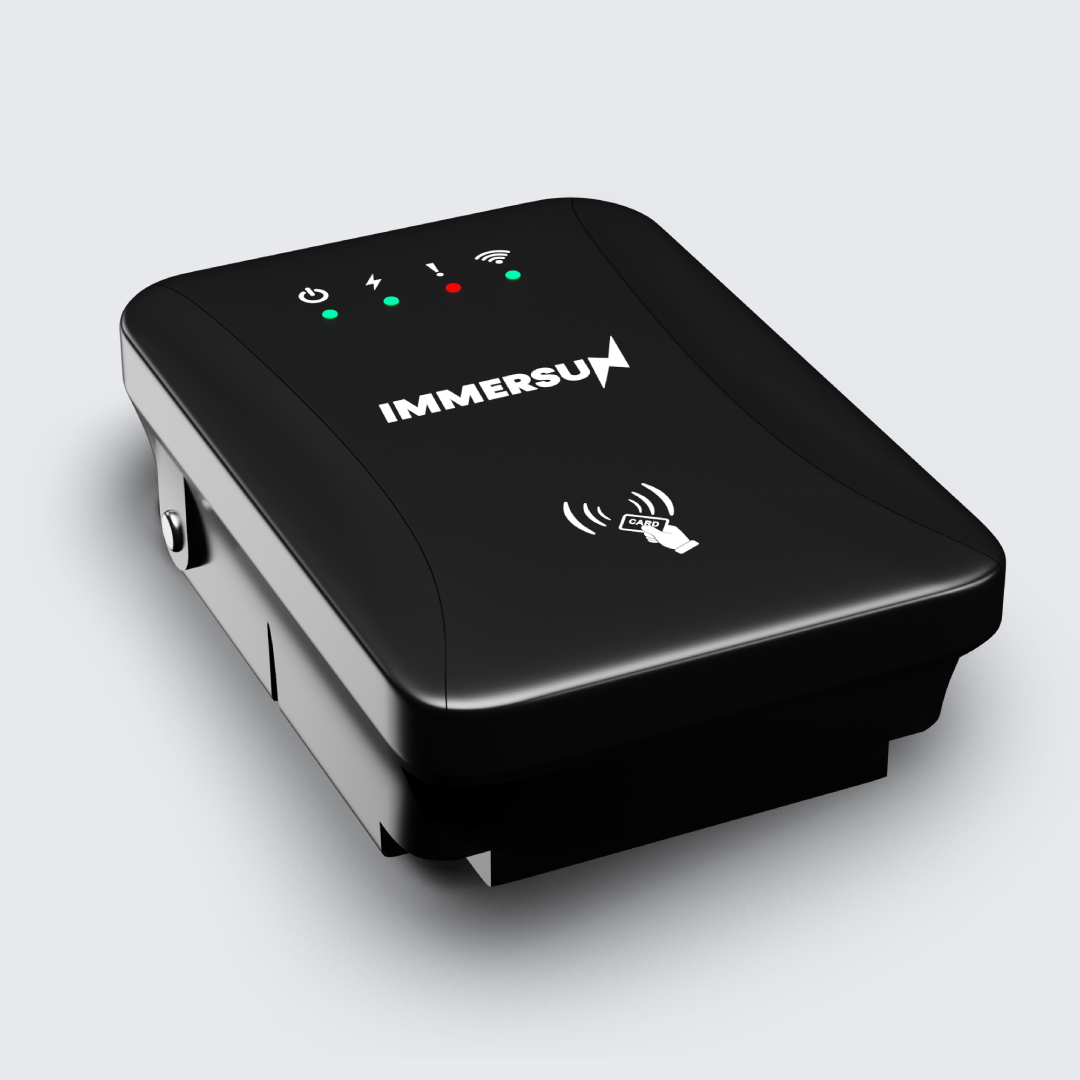

Indicators
4 LED Indicators – Power/Connect/ Charging/Fault
LCD Display
No
External Communication
LAN (RJ-45) and Wi-Fi
OCPP Protocol (Optional)
OCPP 1.6J
Storage Temperature
-40 to 75℃ ambient
Operating Temperature
-30 to 55℃ ambient
Operating Humidity
Up to 95% non-condensing
Altitude
≤2000m
Storage Temperature
-40 to 75℃ ambient
COOLING METHOD
Natural Cooling
Enclosure Material
Available in White & Black – PC+ASA
IP CODE
IP65
Electrical Protection
Over/Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Ground Protection, Over-temp Protection, Surge Protection
Compliance
EN 60335-1:2012 – Household and similar electrical appliances – Safety – Part 1: General requirements.
EN 55014-1:2006 + A2:2011 – Electromagnetic compatibility (EMC) Requirements for household appliances (Emissions).
EN 55014-2:1997 + A1:2001 + A2:2008 – Electromagnetic compatibility (EMC) Requirements for household appliances (Immunity).
EN 55014-2:2006 + A1:2009 + A2:2009 – Limits for harmonic current emissions.
EN 61000-3-3:2008 – Limitation of voltage changes, voltage fluctuations and flicker.
Frequently asked questions
BUILT-IN PEN PROTECTION
What is integrated PEN protection?
PEN protection stands for Protective Earth Neutral. It is a safety feature designed to protect against electrical hazards in an electrical system. In an electrical system, the protective earth (PE) conductor is connected to the earth, and the neutral conductor is connected to the power supply. The PEN conductor combines the protective earth and neutral conductor into one conductor, which helps to reduce the risk of electrical hazards in the system.
Integrated PEN protection refers to PEN protection that is built into an electrical device or system. It is a type of electrical protection designed to ensure the safety of the device or system, as well as the people and property that may be connected to it. Integrated PEN protection is often found in electrical devices and systems used in residential, commercial, and industrial settings. It is an important safety feature that helps to prevent electrical accidents and injuries, and it is typically required by local building codes and regulations.
How does the Immersun EV Charger work?
The Immersun EV Charger is a device that allows you to charge your electric vehicle (EV) at home by connecting it to your home’s electrical system. It features a user-friendly interface, making it easy to start and stop charging.
Is the Immersun EV Charger compatible with all types of EVs?
The Immersun EV Charger is designed to be compatible with most types of EVs. However, it’s always a good idea to check the charger’s compatibility with your specific EV model before purchasing and installing it.
How do I install the Immersun EV Charger?
Installing the Immersun EV Charger involves connecting it to your home’s electrical system. You should hire a qualified electrician to install the EV Charger, as working with electricity can be dangerous.
How do I use the Immersun EV Charger to charge my EV?
To use the Immersun EV Charger, park your EV near the charger and connect the charging cable to your vehicle. Then, use the app or switch on the charger to start and stop charging.
Is the Immersun EV Charger safe to use?
The Immersun EV Charger is designed to be safe to use when installed and used according to the instructions provided in the user manual. However, as with any electrical device, it’s important to use caution and follow proper safety procedures when working with it. If you are unsure how to use the Immersun EV Charger safely, it’s always a good idea to consult with Immersun or a qualified professional.
How do I clean or maintain the Immersun EV Charger?
The Immersun EV Charger should not require much maintenance, but you may want to occasionally clean the device by wiping it down with a dry cloth. It’s important to follow the instructions provided in the user manual for any specific cleaning or maintenance recommendations.
Can I use the Immersun EV Charger if I don't have an electric vehicle?
The Immersun EV Charger is designed to charge electric vehicles (EVs). If you do not have an EV, the charger will not be useful to you.
Is there a warranty available for the Immersun EV Charger?
Yes, the Immersun EV Charger comes with 3 years manufacturer’s warranty. For details on the terms and conditions of the warranty, please refer to the user manual or contact Immersun.
